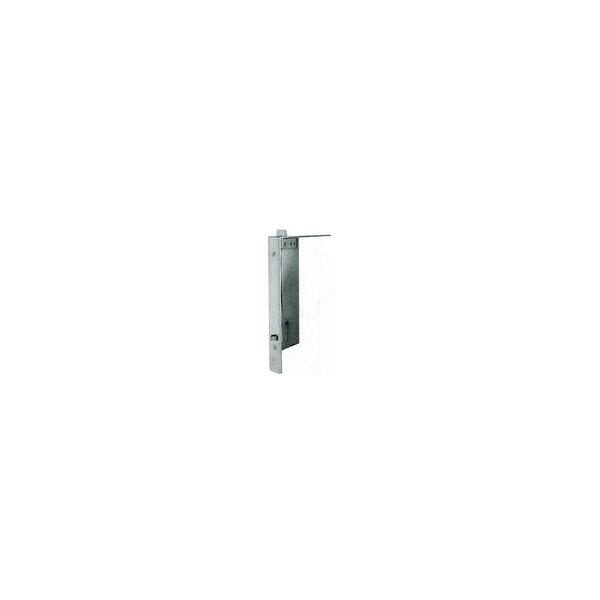

These top only automatic UL listed flush bolt for wood door 1" w x 8 1/2" l x 2" d body are fully automatic, where the inactive door is latched, the bolts are extended when active door closes, then the door is unlatched and bolts retract when active door is opened The flush bolt is non handed.
Features:
- UL Listed for Fire Doors
- Models with Auxiliary Fire Latch Eliminates The Bottom Bolt and is UL Listed for Fire Doors
- Finished Cover Plates Permit Finish Changes In Stock Or At Job Site
- Bolts Have 3/4" Throw with a 7/8"Vertical Adjustment
- Meets Ansi A1563 Type 25
- Optional Dust Proof Strikes - Dp1 Or Dp2, Prevents Dirt Build Up Assuring Full Engagement of Bottom Bolt
- Body Size: 1" Wide X 6 3/4" X 2" Deep
- Guide Size: 1" Wide X 1 27/32" Long X 27/32" High X 3/32" Thick
- Strike Size: 15/15" Wide X 2 1/4" Long X 1 1/16" Thick
- Rub Plate Size: 1 1/4" Wide X 1 11/16" Log X 3/64" Thick
- Auxiliary Fire Latch Size: 1" Wide X 1 3/4" Long X 3 1/4" Deep
IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
